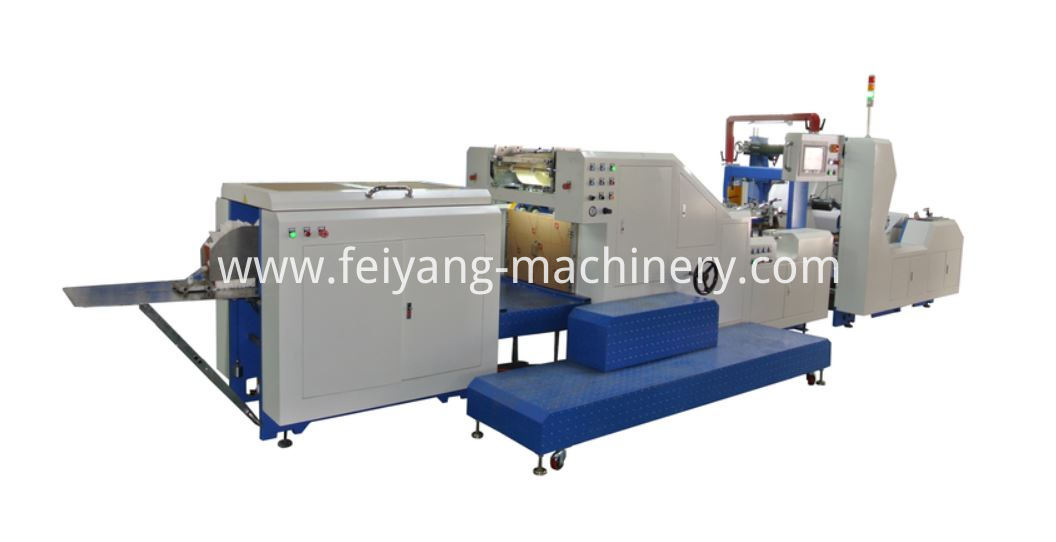

This machine is designed to manufacture square bottom paper bags without handles from paper roll, and it is an ideal equipment for producing small-size paper bags fast. By implementing steps including paper feeding, tube forming, tube cutting and bottom forming inline, this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length, so as to ensure cutting precision. The equipped SIEMENS PLC system ensures that the machine can perform quickly and stably. This machine can process very thin paper, as well as produce paper bags very fast, thus this machine is especially suitable for being applied in food industries.
Item no: FY-190G
Paper Roll Width: 290~630mm
Max. Paper Roll Diameter:Ф1200mm
Material Core Diameter:Ф76mm (3``)
Paper Thickness:40~120g/m2
Tube Length:190~350mm
Bag Body Width:80~190mm
Bag Bottom Size:50~105mm
Max. Production Speed:260bags/min
Total Power:13.5kw
Total Weight:Approx. 6000kg
Overall Dimension:L8500mm×W1700mm×H1600mm
Item no: FY-280G
Paper Roll Width:370~890mm
Max. Paper Roll Diameter:ф1500mm
Material Core Diameter:ф76mm (3``)
Paper Thickness:50~140g/m2
Tube Length:290~530mm
Bag Body Width:120~280mm
Bag Bottom Size:60~150mm
Max. Production Speed:200bags/min
Total Power:18.5kw
Total Weight:Approx. 8000kg
Overall Dimension:L9000mm×W3300mm×H1900mm
Item no: FY-350G
Ppaer Roll Width:450~970mm
Max. Paper Roll Diameter:ф1200mm
Material Core Diameter:ф76mm (3``)
Paper Thickness:60~170g/m2
Tube Length:270~530mm
Bag Body Width:150~320mm
Bag Bottom Size:60~150mm
Max. Production Speed:220bags/min
Total Power:18.5kw
Total Weight:Approx. 8500kg
Overall Dimension:L9000mm×W3450mm×H1900mm
Item no: FY-450G
Paper Roll Width:660~1230mm
Max. Paper Roll Diameter:ф1500mm
Material Core Diameter:ф76mm (3``)
Paper Thickness:80~180g/m2
Tube Length:270~530mm
Bag Body Width:260~450mm
Bag Bottom Size:85~180mm
Max. Production Speed:180bags/min
Total Power:18.5kw
Total Weight:Approx.:10000kg
Overall Dimension:L9000mm×W3500mm×H1900mm
